Basic Info.
Packaging & Delivery
Product Description

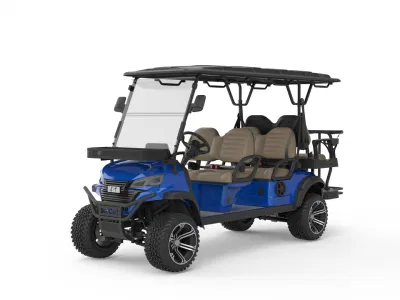

Factory Outlet 6 Person Seat Lithium Battery Folding Electric Golf Carts with CE Certificate Custom Electric Golf Carts
| Item | ET-L4+2 | |
| Power(optional) | 48V5KW(Lead acid) | 72V5KW(Lithium battery) |
| Chassis frame | High strength sheet metal rectangular frame (electrophoresis + highlight) | |
| Outline dimension | 3695*1340*2130mm | |
| Front / rear tread | Front1005mm/Rear1075mm | |
| Wheel Axle distance | 2436mm | |
| Ground clearance | 170mm | |
| Minimum turning radius | 3.2m | |
| Net weight | 556kg | |
| Maximum driving speed | 50km/h(Can be adjusted according to customer needs) | |
| Climbing capacity | 25% | |
| Standing slope performance | 25% | |
| Endurance | 80-100km (flat road) | |
| Braking distance | <6m | |
| Motor voltage(Alternating current) | 48V5KW | 72V5KW |
| Motor brand | KDS Motor | |
| Electric control brand | Borcart 48V350A | Borcart 72V450A |
| Battery | Shengyang lead acid without maintenance 6*8V150AH | Guosheng 72v120ah lithium iron phosphate |
| DC converter | High power non isolated DC-DC 48V/12V-300W | High power non isolated DC-DC 72V/12V-300W |
| Battery charger | Preston intelligent vehicle charger 48V/25A,charging time < 8 hours (discharge rate 80%) | Standard lithium iron phosphate charger |
| Steering system | Bidirectional rack and pinion steering system with automatic clearance compensation function | |
| Braking system | Zero crossing rear axle: four wheel hydraulic pressure brake, four wheel disc brake + electronic brake parking | |
| Front suspension | Double swing arm and independent front suspension + coil spring + barrel hydraulic pressure shock absorber. | |
| Rear suspension | Integral rear axle, speed ratio 16:1,coil spring damping + barrel hydraulic pressure damping + rear stabilizer bar | |
| Tire specification | DOT certification;Road tire 23x10.5-12(tire diameter 520mm)12 inch aluminum wheel hub | |
| Ceiling | Frosted black square pipe frame + PP injection molding ceiling | |
| Floor | Aluminum alloy profile anti-skid floor,high strength structure,corrosion resistance and aging resistance | |
| Body of car | The front cover,seat barrel,body and rear tail cover are injection molded for automobiles;Frosted black square pipe ceiling column; | |
| Seat | Integral foam forming cushion;High grade imported leather (optional) color separation;Reverse row seat can be turned over,including storage box | |
| Instrument panel | Injection molding instrument panel, electric lock switch, double arm combination switch, gear switch, electronic hand brake switch, water cup holder; Dual USB data interface, 12V power supply, USB + type-C fast charging. The LCD electric vehicle combination instrument (including fault diagnosis information display) platform is an embedded multimedia touch LCD screen. Optional reverse image. | |
| Rearview mirror | One manually adjustable and foldable exterior rearview mirror on the left and right | |
| Lights and warning signals | Led front combination lamp (low beam lamp,high beam lamp,turn signal lamp,daytime running lamp,position lamp) LED rear tail lamp (brake lamp, position lamp, turn signal lamp); Snail horn, reversing buzzer | |
| Front windshield and wiper | DOT certified acrylic plexiglass;Optional tempered glass + wiper | |
Function:
1.HASDA IP66 waterproof advanced multimedia combination LCD screen with vehicle status information;
2.HASDA IP66 Full range hi fi speaker H058
3.First class seats (overall foam seat cushion+solid high-grade imported leather).
4.High strength aluminum alloy oxidation anti-skid floor, corrosion resistance and aging resistance.
Suspension and braking system:
1.Front suspension: double arm independent front suspension+spiral spring+cylindrical hydraulic shock absorption.
2.Rear suspension: integral rear axle,speed ratio 16:1,coil spring damping+cylindrical hydraulic damping+rear stabilizer bar
3.Brake system:zero crossing rear axle:four-wheel hydraulic brake,four-wheel disc brake+electronic brake parking
4.Steering system:two-way rack and pinion steering system,automatic clearance compensation function.
5.Frame: high-strength sheet metal trapezoidal frame (electrophoresis+highlight).
CART DETAILS
CUSTOMER REAL SHOW
EXHIBITION&CUSTOMERS VISITING
OUR WORKSHOP
PACKING & SHIPPING
FAQ
Q1.Why choose us?
A:Because we have 22 years experience in Golf Carts Industry,with more than 20 engineers and 200 staff,richful production,Top and modern technology,reliable service after sales,our Golf Carts are popular,as they are fashionable,smart,practical and economical.
Q2.What is your terms of payment?
A:T/T 30% as deposit,We'll show your order process by the photos and vedio.
Q3.What is your terms of delivery?
A:EXW,FOB,CFR ,CIF,DDP.
Q4.How about your delivery time?
A:Usually,Sample order within 5 days and 15-30 days for bulk order after receiving your prepayment.The specific delivery time depends on the items and the quantity of your order.
Q5.Can you customize logo?
A:Of course, you only need to send its pdf file. We have a professional designer to help you design, and will send it to you for
confirmation after design.
Q6.Can you produce according to the samples and accept the OEM,ODM order?
A:Of course,we can produce as per your samples or technical drawings.We accept OEM,ODM order.
Q7.What is your MOQ?
A:1PCS.Also,we can supply parts to you if you need.
Q8.Do you test your Golf Cart before delivery?
A:Sure,we have a inspect standard and 100% test before delivery.
Q9:How about the warranty?
A:some parts with more than 4 year warranty,also,we can provide accessory in the service after sales.
Q10:How about the color?
A:The car can be painted any color as client request,usually with 2 colors.
Q11:How do you keep our business long-term and good relationship?
A:First,our Golf Carts can attract you greatly,as our Golf Carts are fashion,luxury,smart and economical;Second:We keep Top quality and competitive price to make our customers benefit
